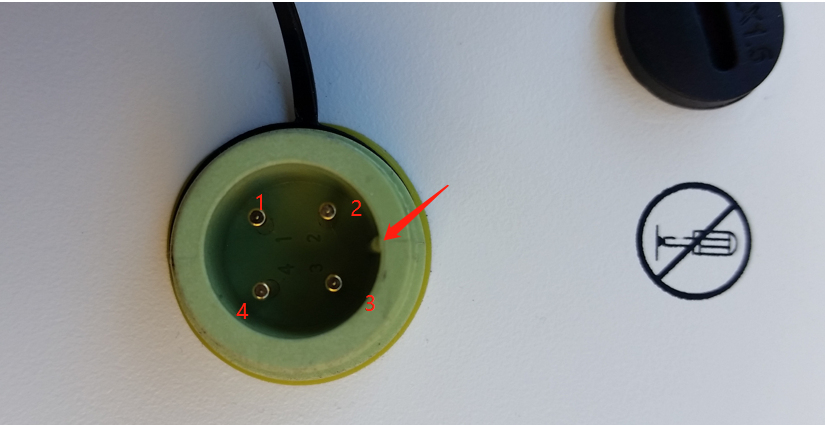

This port is a green port located externally on all Solis inverters on the bottom of the inverter.

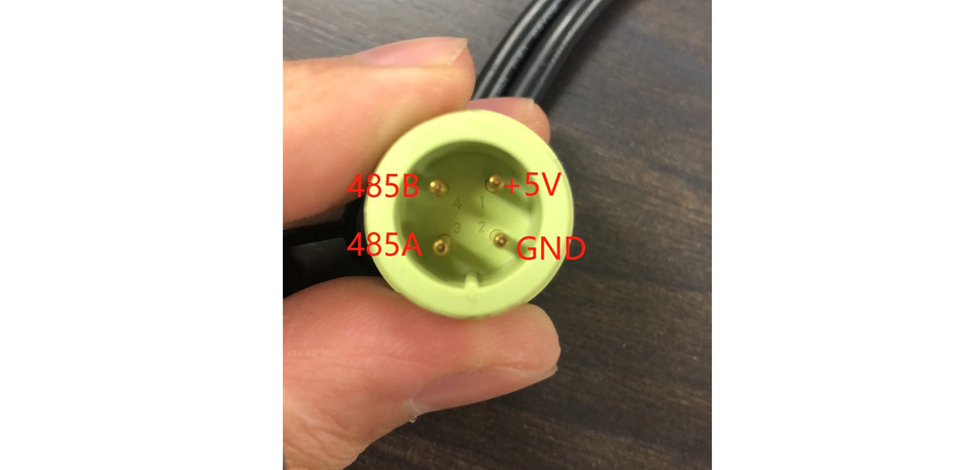

Pin 1 = +5 volts DC : RED
pin 2 = -5 volts DC : BLACK
Pin 3= +RS485 : YELLOW
Pin 4 = -RS485 : BLUE
Checking the voltage on pins 1 and 2 with a multimeter will ensure power is provided to the communication device (ex: wifi datalogger. The voltage reading should be 5V on DC.
Checking the voltage on pins 3 and 4 with a multimeter will ensure RS485 signal between the inverter and the communication device. RS-485 voltage should read ~1.7Volts on DC

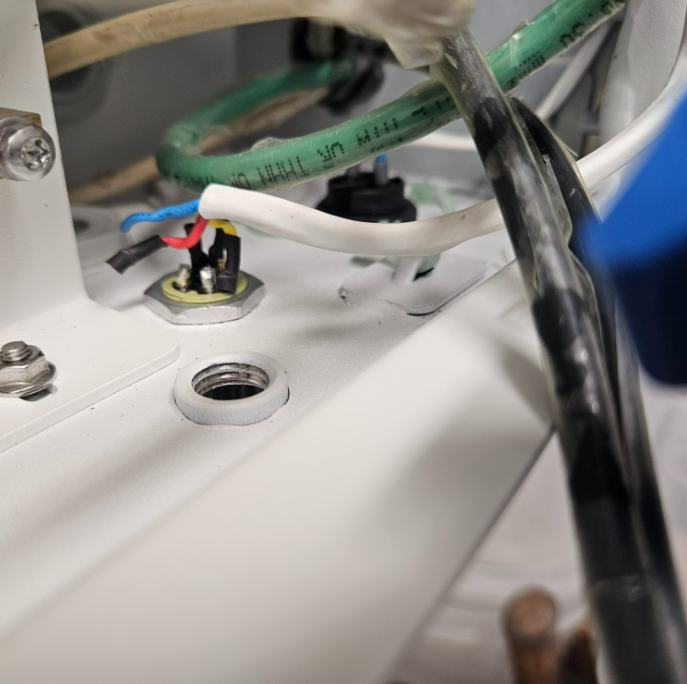

In cases such as the one shown below, where the wires have broken off please refer to the following pin-wire color combination:
Pin 1 = Red
Pin 2 = Black
Pin 3 = Yellow
Pin 4 = Blue
By providing this to the tech, they should be able to solder the wires to the pins.
