Solis I-V Curve Scanning Guide

Solis I-V Curve Scanning Guide

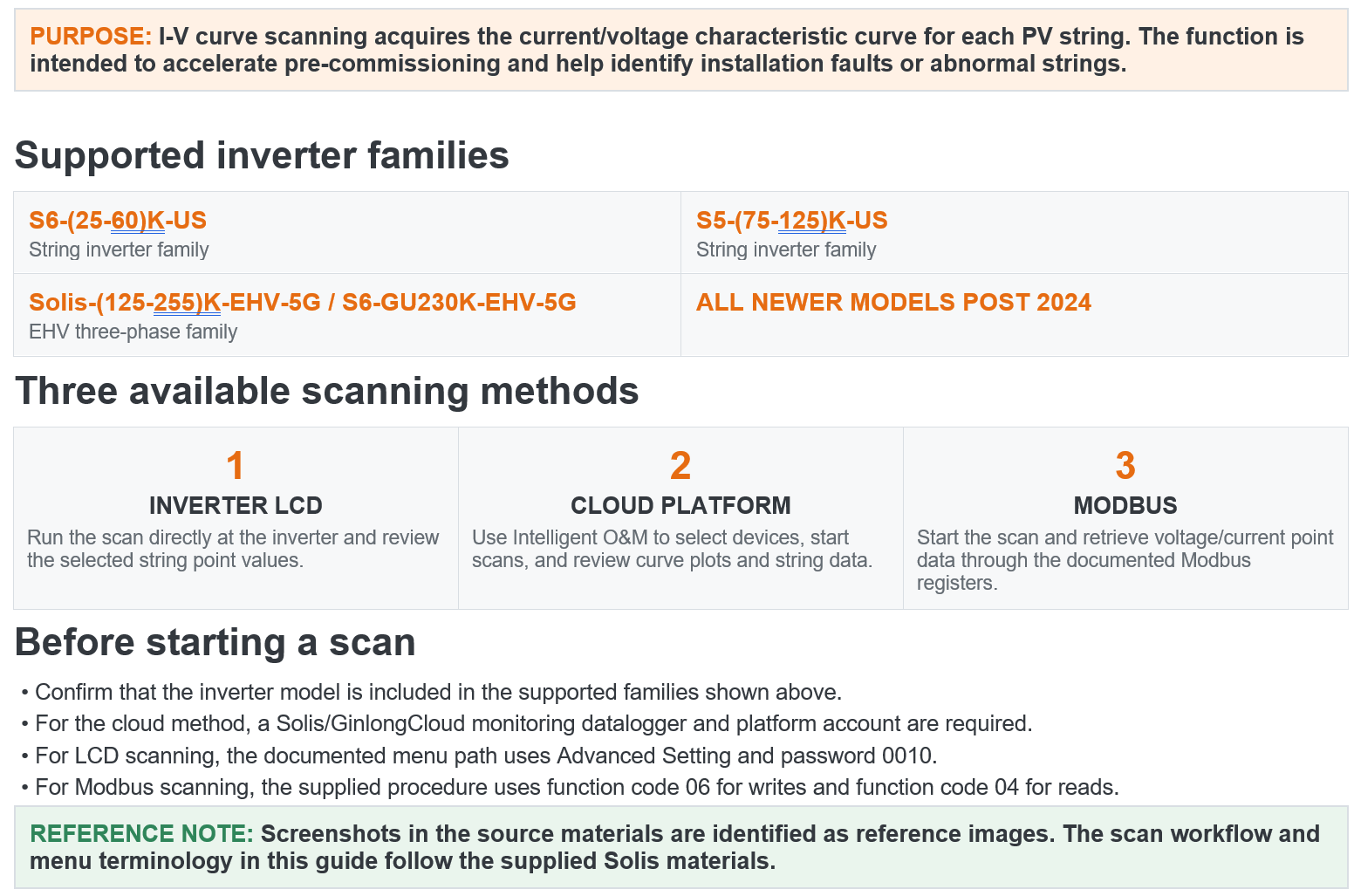

Customer guide for string-level I/V curve acquisition, review, and supported scan methods

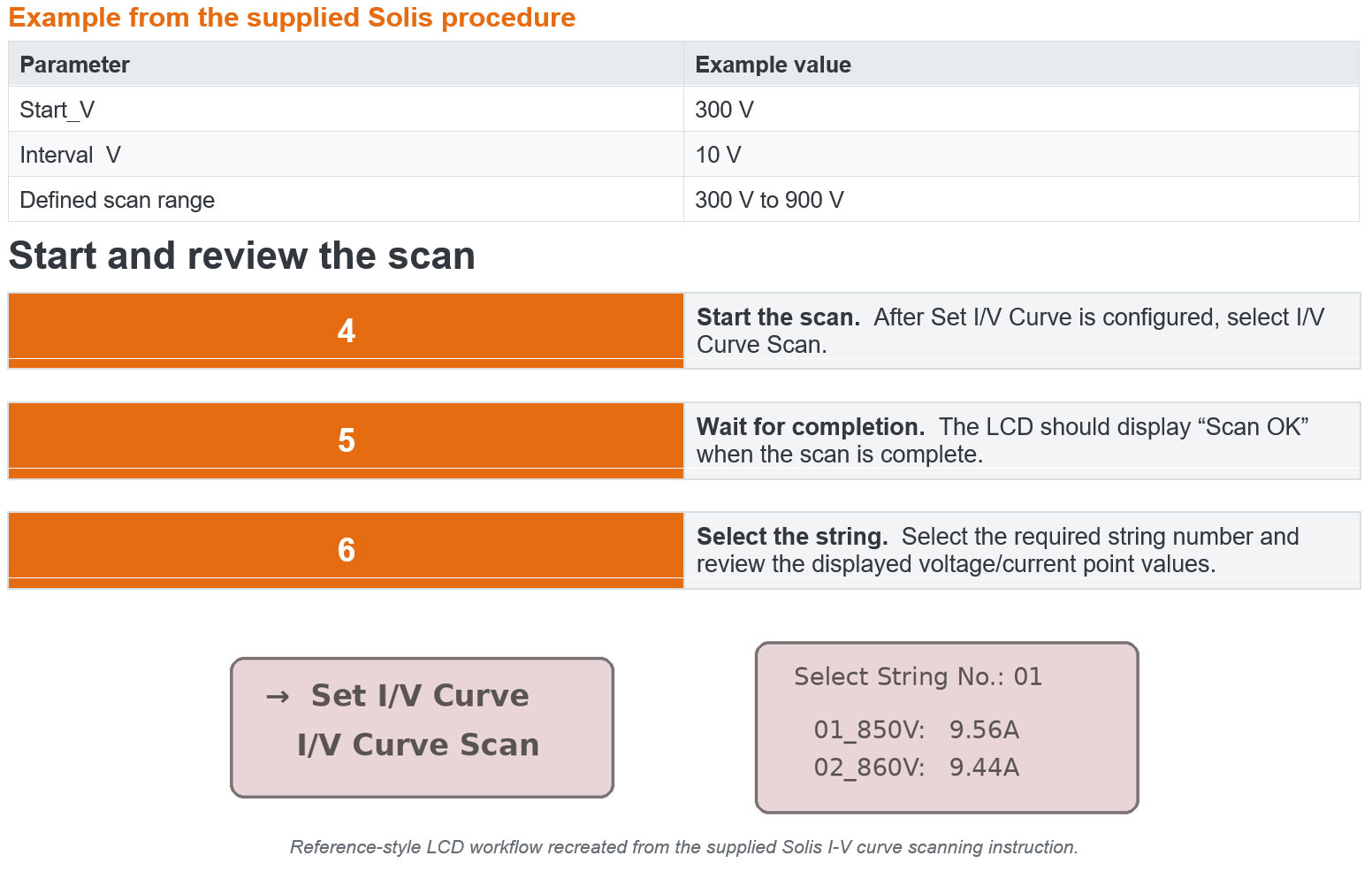

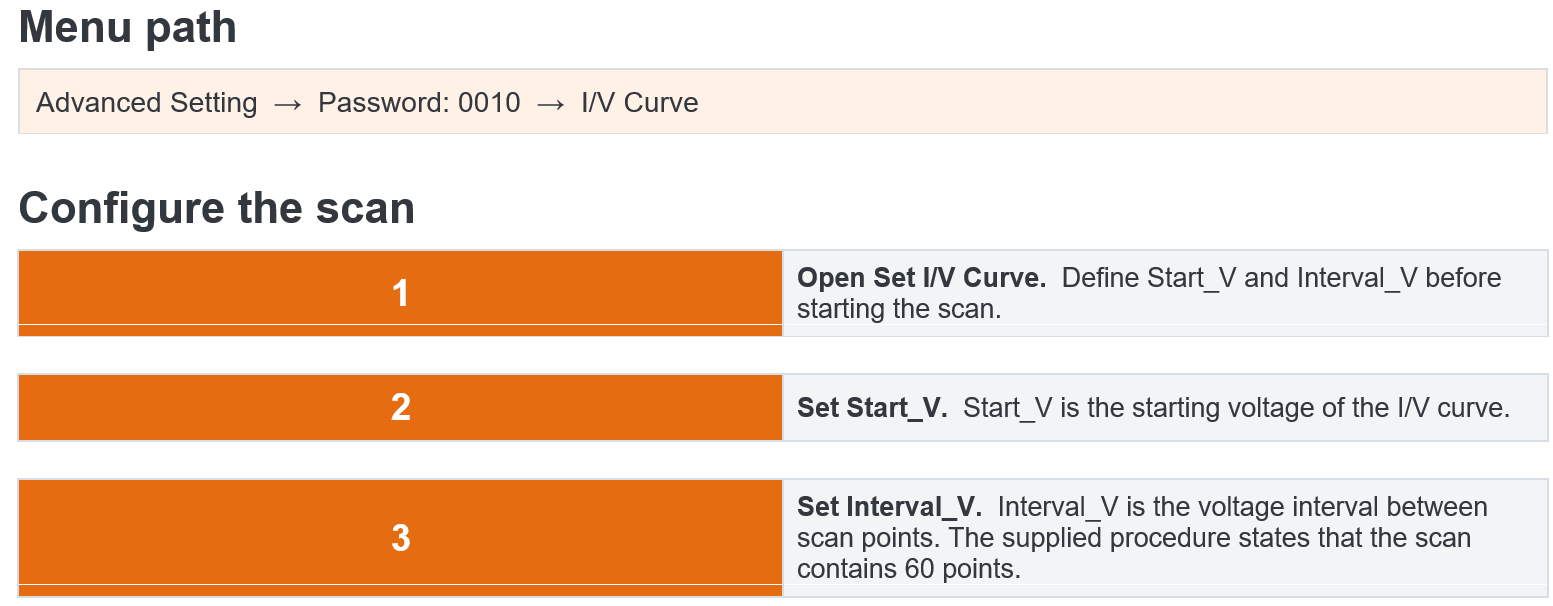

Method 1 - Inverter LCD

Run the I-V curve scan locally from the inverter display

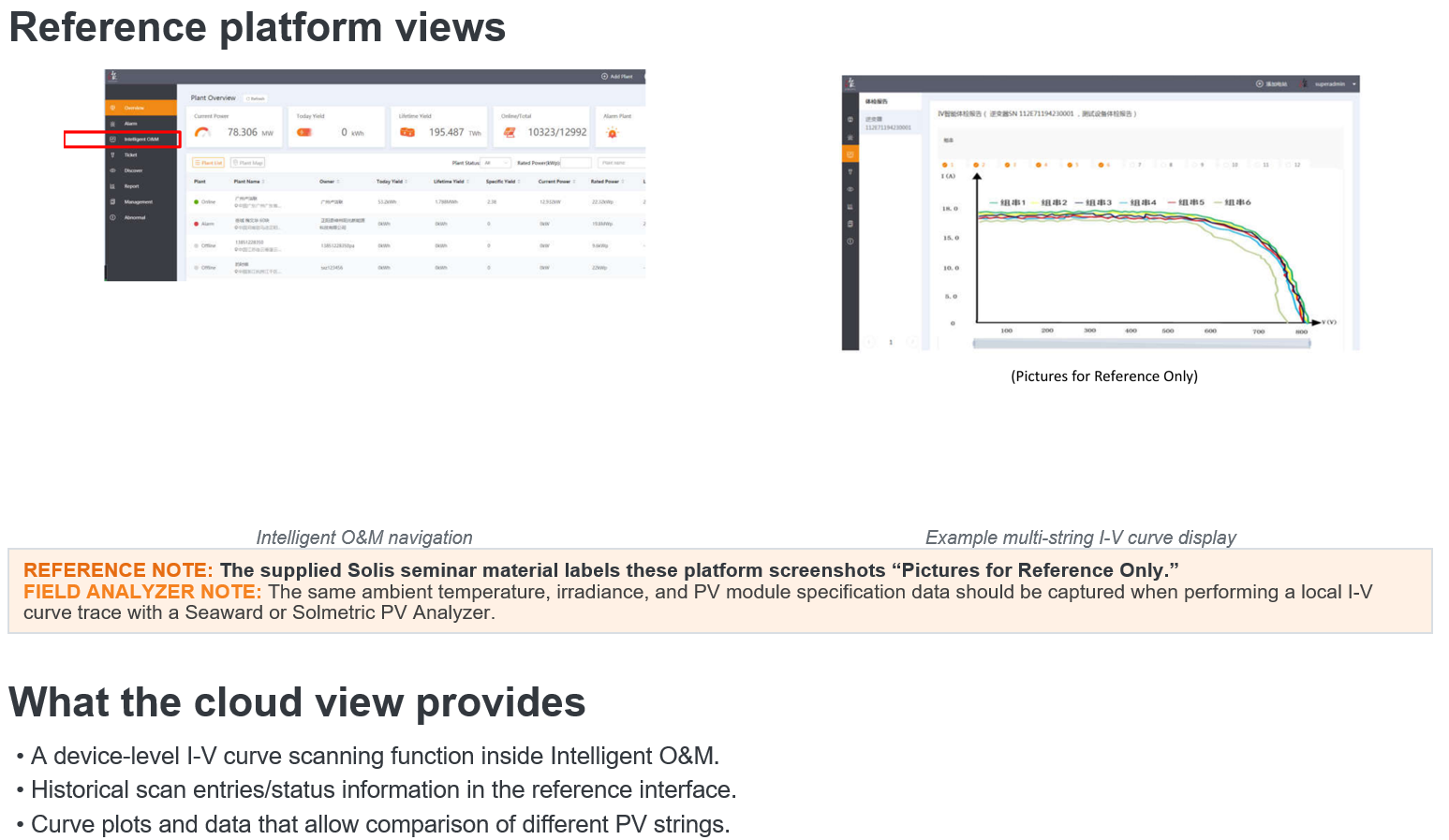

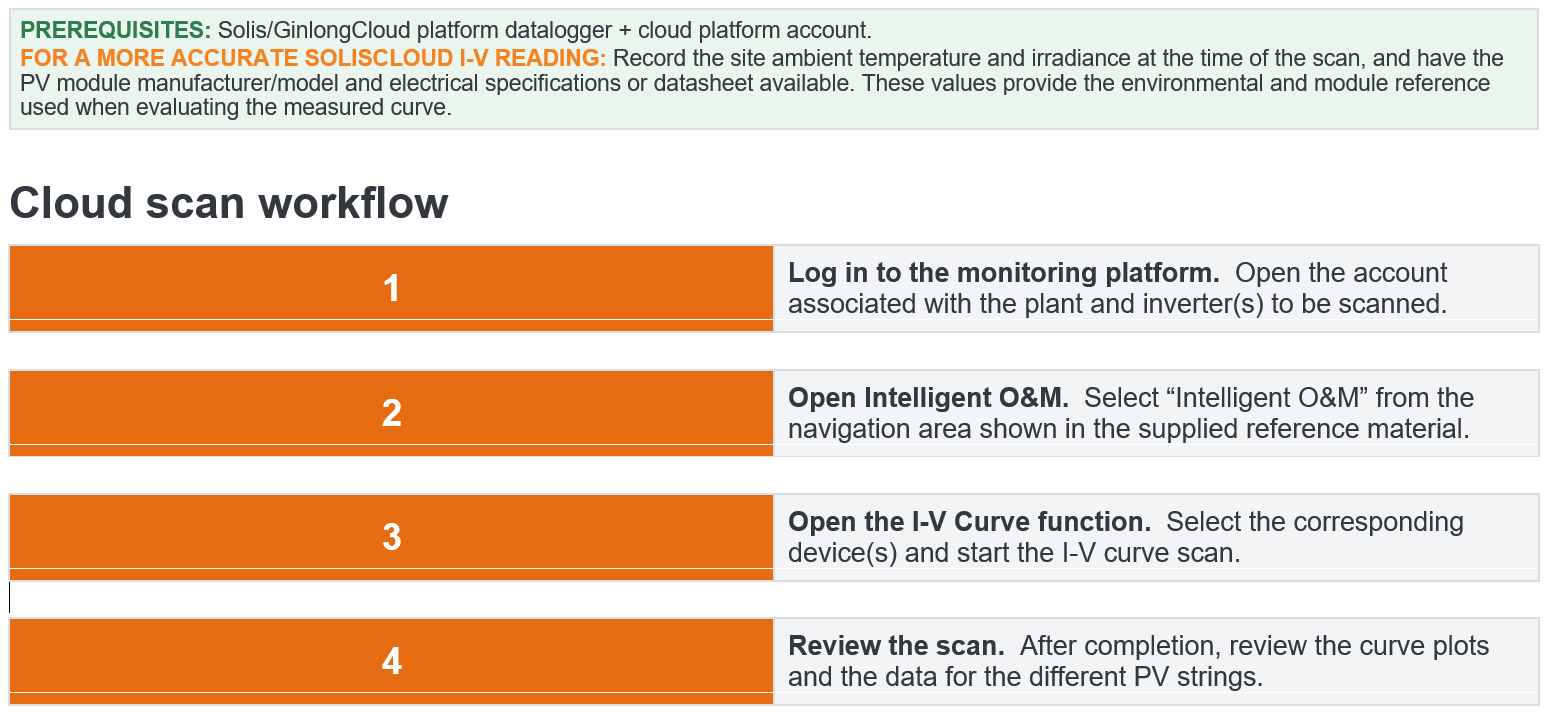

Method 2 - Cloud Monitoring Platform

Start an I-V curve scan and review multiple string curves from Intelligent O&M

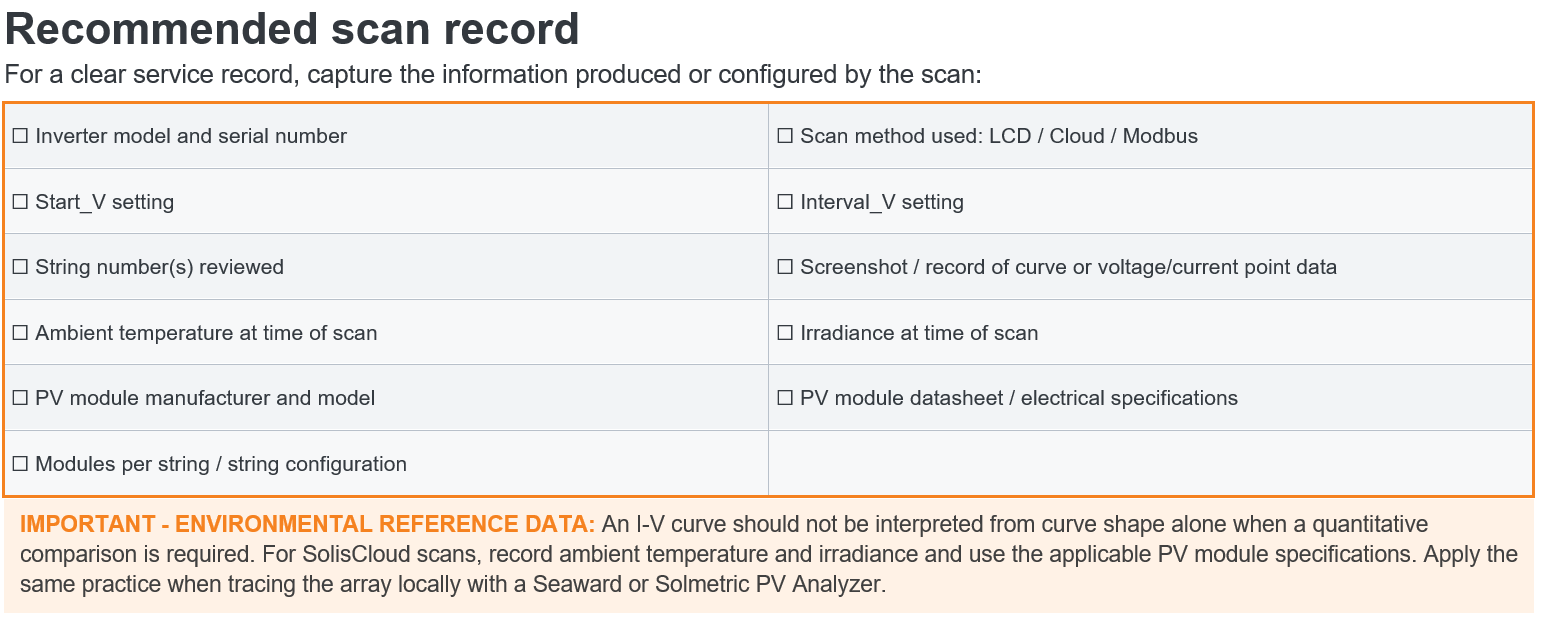

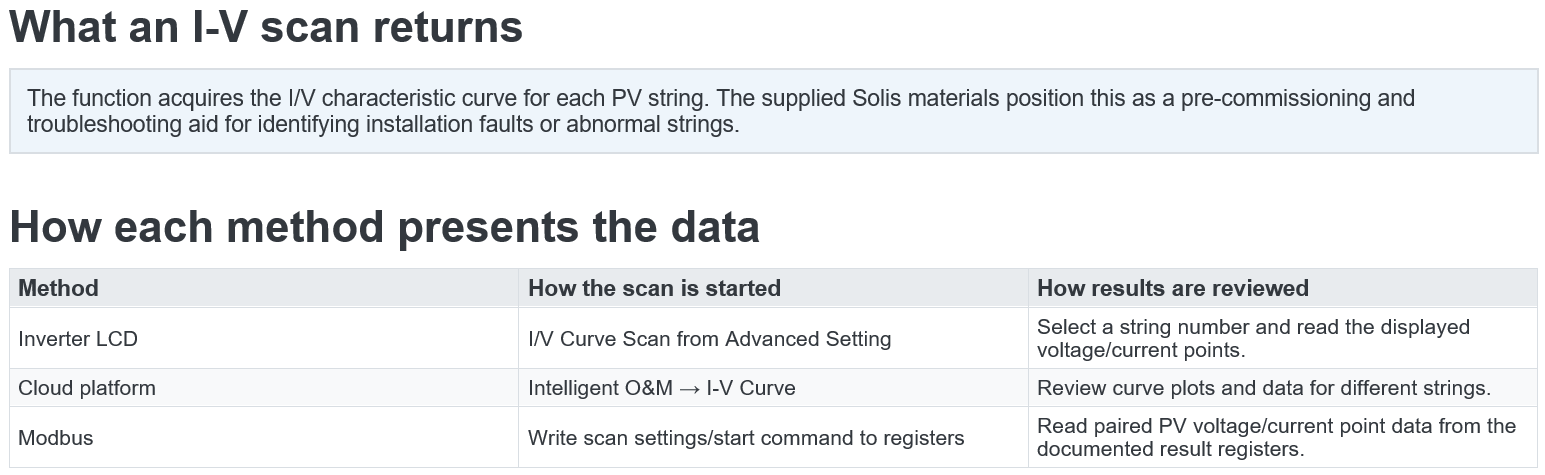

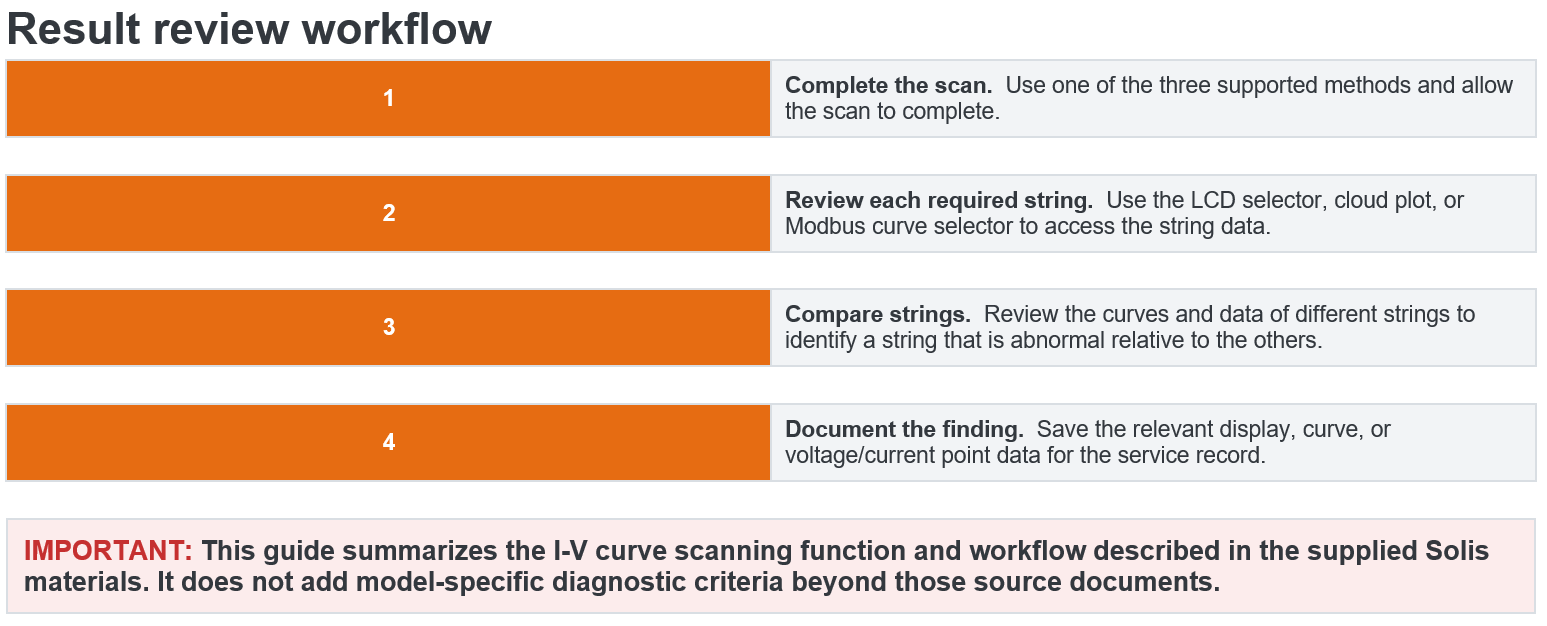

Reviewing and Documenting Scan Results

Use the scan data to compare PV strings and identify abnormal strings for further investigation

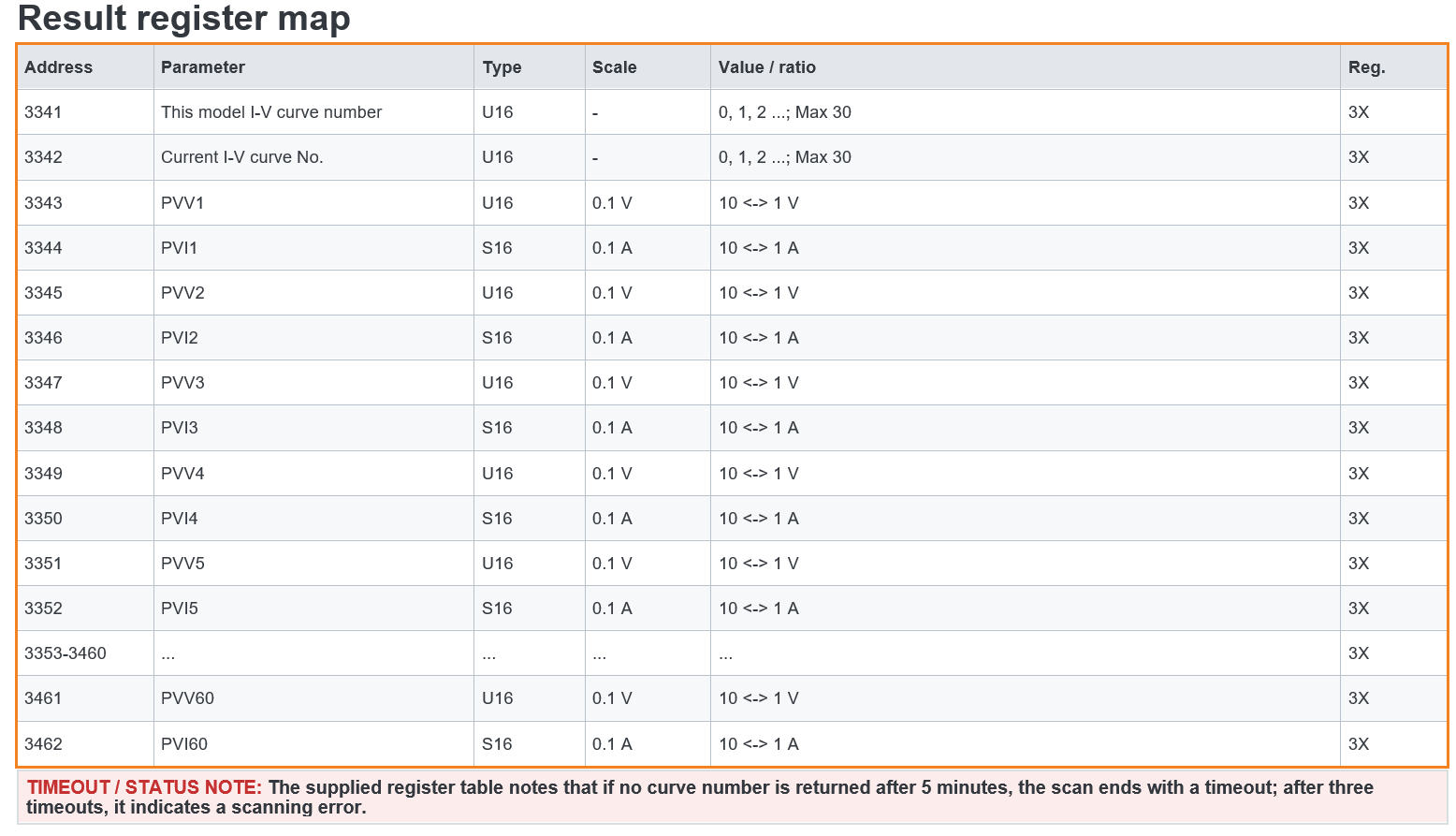

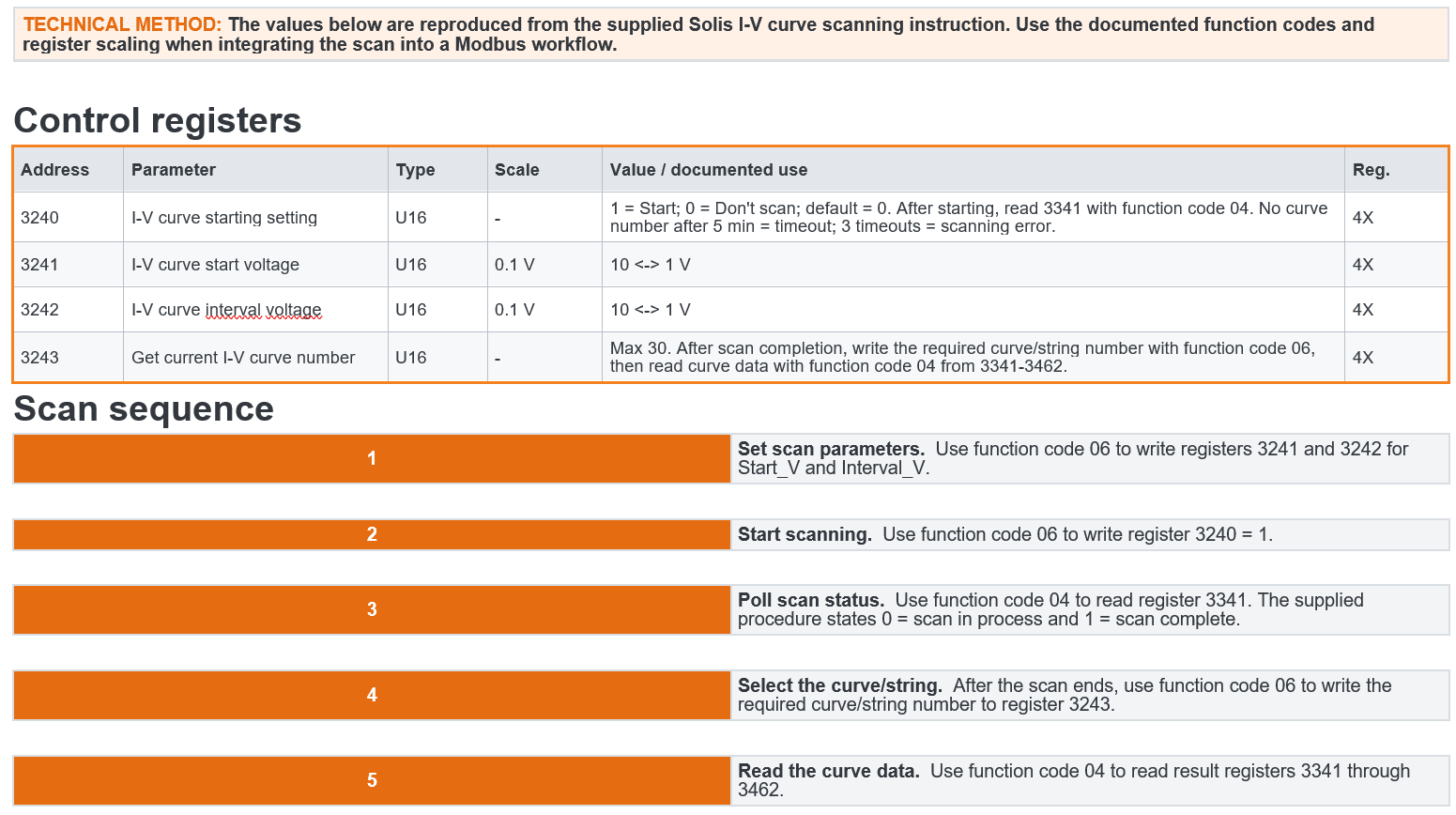

Method 3 - Modbus Register Procedure

Register-based I-V curve scanning and retrieval of up to 60 voltage/current point pairs
