Solis S6-GC-30K-LV-US: High-Leg Delta Connection Guide
This document outlines the procedure for connecting the Solis S6-GC-30K-LV-US inverter to a 240V High-Leg Delta power system. Please follow these steps carefully to ensure proper and safe operation.
1. Software Update:
Ensure your inverter is running the latest software version. This is crucial for compatibility with High-Leg Delta systems.
- HMI software: C701
- DSP software: 5906
Updating Software:
- Preferred Method: Connect the inverter to Solis Cloud for automatic updates.
- Alternative Method (only for areas with limited internet connectivity): Contact Solis Technical Support to obtain an update stick and instructions for manual updating.
2. Grid Standard Selection:
After updating the software, select the 240V (UL-240L) grid standard in the inverter settings. The inverter will automatically adjust voltages for the High-Leg Delta configuration.

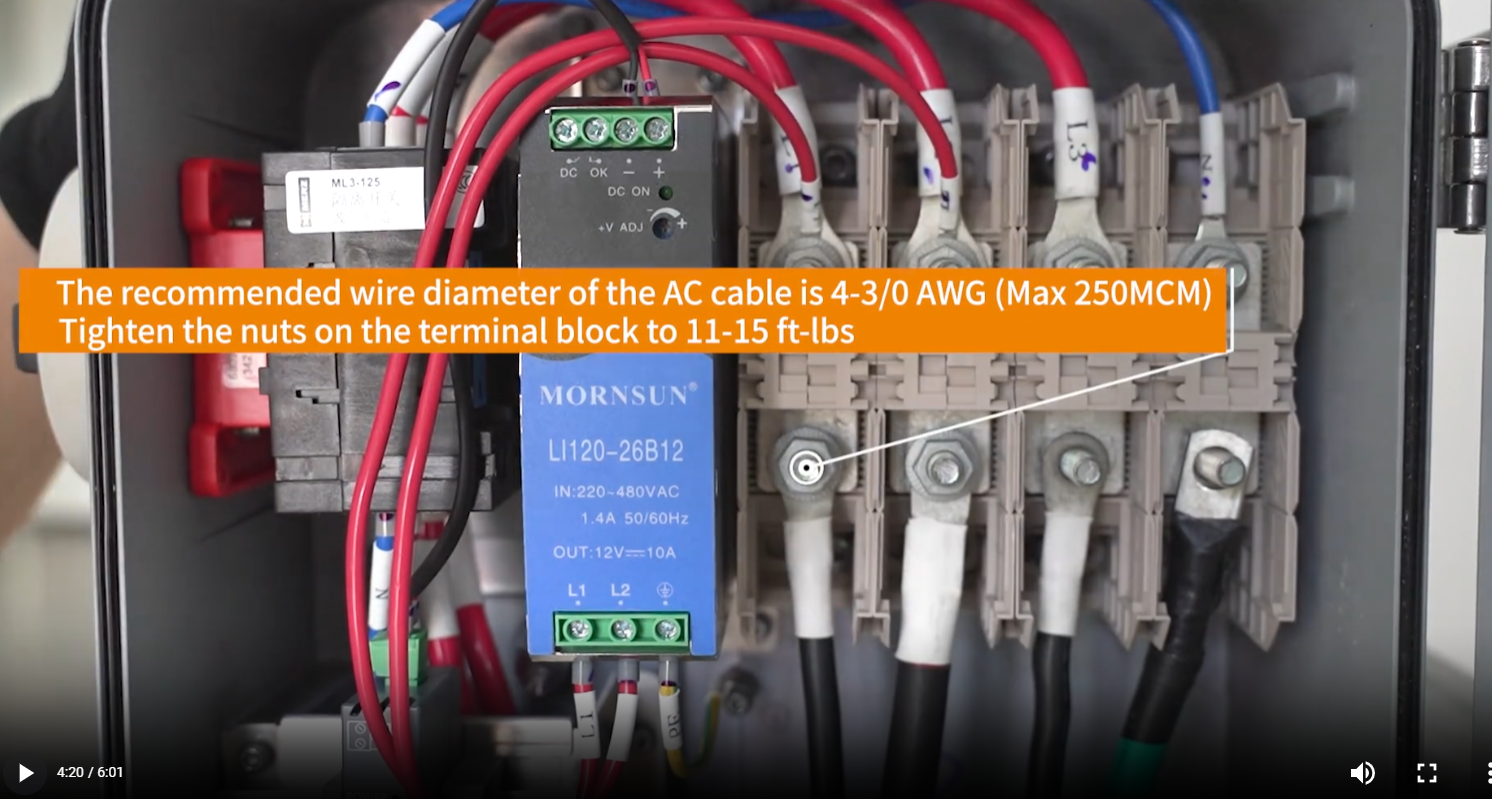

3. High Side Connection:
Identify the L2 or B phase on the AC input side of the inverter. This phase will have a larger conductor. Connect the high side of your delta power system to this phase.
4. Neutral Wire:
Important: For proper 240V High-Leg Delta operation, the neutral wire must not be connected to the inverter.
- If the neutral wire is already in the inverter's wire box: Disconnect and remove it.
- If the neutral wire cannot be removed: Carefully insulate it with electrical tape and secure it to prevent accidental contact.
Key Notes:
- The latest software is compatible with both high-side and non-high-side inverters. The inverter will automatically adjust voltages based on the selected grid code (208V for non-high-side, 240V for high-side).
- Connecting the neutral wire in a High-Leg Delta configuration will lead to measurement errors and potential operational issues.
Contacting Solis Support:
If you have any questions or require assistance, please contact Solis Technical Support.
