Mechanical vs Compression Lugs - Guidelines for connections

Created by Eddie De La Torre, Modified on Wed, Oct 29 at 6:05 AM by Eddie De La Torre

This memo outlines the protocols for electrical connections to ensure the safety, reliability, and optimal performance of our systems. Adherence to these guidelines is crucial for maintaining the quality of our work.

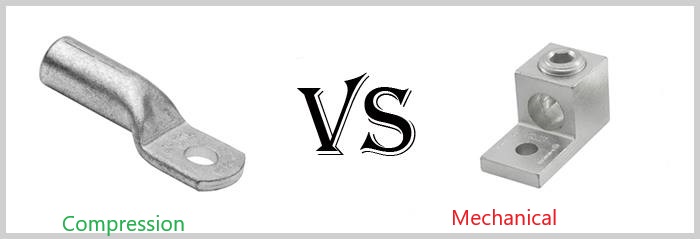

1. Priority: Compression Lugs

Mandatory Use of Compression Lugs: When connecting to inverters, only compression lugs are authorized. These lugs create a strong, permanent connection that enhances the performance and longevity of our inverters.
Benefits of Compression Lugs: Compression lugs are essential for reliable electrical connections, reducing the risk of overheating and connection failures.

2. Wire Ferrules for Cable Connections

Use of Wire Ferrules: Wire ferrules must be used on all cable connections when mechanical terminations are required. This ensures a secure and reliable connection.
Fine Print on Mechanical Lugs: Mechanical lugs may only be used with wire ferrules and are not preferred. Their use can introduce risks of ampacity removal and the potential for hot spots. *This is only authorized if approved by Solis Engineering Team on a case by case*

NOTE: We will not authorize RMA's if Mechanical Lugs were used. The installation is considered Out-Of-Warranty due to not following manufacturer's guidelines per the Installation Manual.

3. Importance of Proper Connections

Ampacity Removal: Improper connections can lead to a reduction in current-carrying capacity, resulting in voltage drops and inefficiencies in our systems.
Prevention of Hot Spots: Bad connections are a significant safety hazard, creating hot spots that may lead to electrical fires. Maintaining proper connections is critical for safe and efficient operation.

Conclusion:

All team members are expected to prioritize the use of compression lugs and adhere to these guidelines for electrical connections. By following these standards, we contribute to the safety and reliability of our systems.

If you have any questions or need further clarification, please do not hesitate to reach out.

Thank you for your cooperation.
